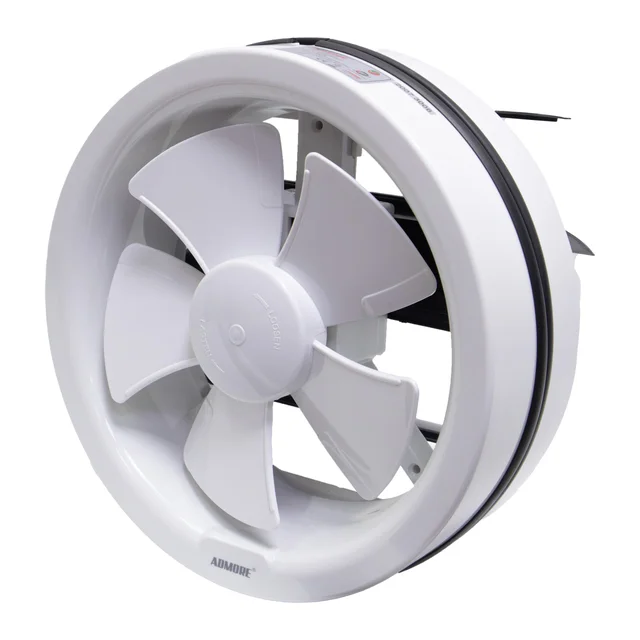

Admore 8" Round Glass Exhaust Fan — Gravity Shutter, 146 CFM (A-SC20)

Model
A-SC20
SKU
ASC20

The Admore A-SC20 8″ Round Glass Exhaust Fan delivers 146 CFM (248 m³/h) at 39 dB from a 29 W single-phase 220-240 V motor. Pearl-white PVC round frame with axial 5-blade impeller and gravity shutter. Adjustable glass / wall cut-hole 210-230 mm

Color
White
Phase
Single
Shutter
Gravity Shutter

Product description

The Admore A-SC20 8" Auto Shutter Round Exhaust Fan is designed for effective ventilation in both residential and commercial settings. Specifically engineered for glass window and wall installations, this exhaust fan provides a direct pathway for air removal to the outside, ensuring a fresher and more comfortable environment. Automatic Shutter System: Equipped with internal mechanical backdraft shutters, the A-SC20 prevents air from re-entering the room when the fan is not in operation, improving energy efficiency and maintaining indoor air quality. Durable Construction: The fan features a robust round PVC case and standard PVC impellers, ensuring long-lasting performance. The 99.9% copper winded motor provides reliable and durable operation, minimizing the need for frequent replacements. Energy Efficient Motor: The high-efficiency, thermally-protected motor operates on 220-240V/50Hz with a power consumption of just 29W. This makes it an energy-conscious choice for continuous ventilation needs. Quiet Operation: With a noise level of only 39dB, the A-SC20 operates quietly, minimizing disruption in living and working spaces. Easy Installation: Designed for glass window mounting, the fan comes with window fixing screws for straightforward installation. The cut-hole size is between 210mm and 230mm, making it compatible with standard glass openings. With an airflow of 248 m³/h (145.96784 CFM), the Admore A-SC20 is an excellent choice for maintaining optimal air quality in your home or business.

Specifications

Color
White
Model
A-SC20
Phase
Single
Voltage
220-240V/50Hz
Type of Fan
Round Glass Exhaust Fan
Body Material
PVC
Mounting Type
Glass Mount
Blade Diameter
8" (200 mm)
Blade Material
PVC
Cut-Hole Size
210-230 mm
Airflow (CFM)
146 CFM
Airflow (m³/h)
248 m³/h
Noise Level (dB)
39 dB
Shutter
Gravity Shutter
Operating Environment
'-10°C to +40°C
Power Consumption (W)
29 W
