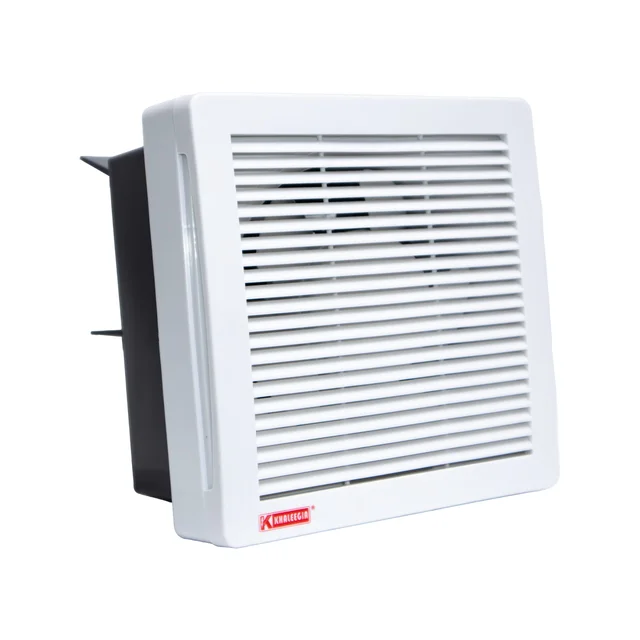

Khaleegia 10" Square Wall Exhaust Fan — Gravity Shutter, 508 CFM (K-AG10)

Overview The K-AG10 is a 10" (250 mm) square wall-mounted exhaust fan with an integral gravity shutter, for the extraction of stale air, moisture and odours from interior spaces. Features • Integral gravity shutter that opens under airflow and closes when the fan stops, preventing back-draught and the ingress of outdoor air, dust and insects. • PVC body, blades and grille, in a white finish. • Single-phase operation on a standard 220-240 V / 50 Hz supply. • Surface wall mounting, with a 290 mm cut-out. Technical specifications • Type: square wall exhaust fan with gravity shutter • Blade diameter: 10" (250 mm); wall cut-out: 290 mm • Power supply: 220-240 V / 50 Hz, single phase; 37 W • Airflow: 508 CFM (863 m³/h); noise level: 42 dB • Operating temperature: -10 °C to +40 °C • Construction: PVC (body, blades and grille), white Applications Bathrooms, kitchens, utility rooms and similar areas requiring intermittent or continuous ventilation.
