Khaleegia 14" 60×60 LED Ceiling Fan — 10W Cool White, Remote (K-CF150LB)

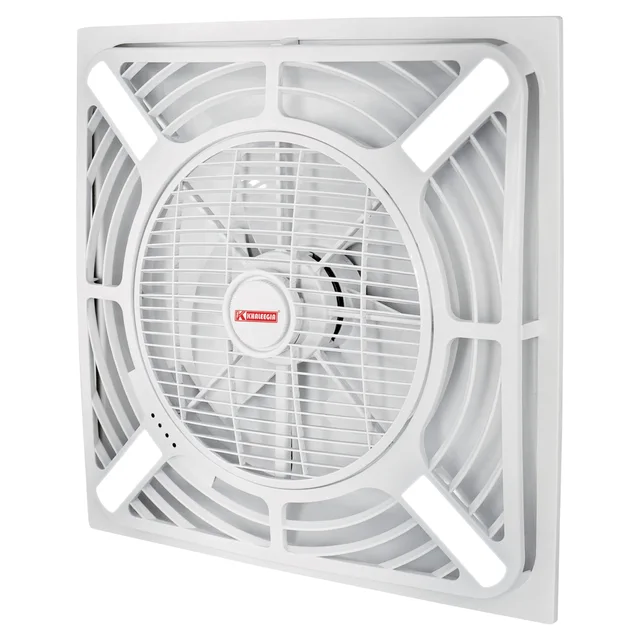

Overview The Khaleegia K-CF150LB is a 60×60 cm recessed ceiling cassette fan with integrated LED lighting — a combined cooling and lighting fitting for modular suspended ceilings. The same fan body as the K-CF150P (without LED) but with four cool-white LED bars set into the diagonal corner braces of the frame, providing ambient room light without a separate fixture. Construction & Materials White PVC frame and grille with four integral corner mounting tabs that sit on the T-bar grid. A 14-inch (350 mm) three-blade PVC fan runs behind a fine white wire safety grid, with a central hub carrying the Khaleegia mark. Four 10 W cool-white (6500 K) LED edge strips are recessed into the diagonal corner braces, throwing light across the surrounding ceiling tile. The IR remote receiver sits in the grille adjacent to the hub; a short power tail exits the top edge for above-ceiling wiring. Operates on 220-240 V single-phase mains at 50 Hz. AC copper motor; blade speed 1250 RPM; fan power 70 W. Integrated LED rated 10 W at 6500 K. Operating temperature range -10 °C to +50 °C. Applications Office floors, meeting rooms, retail and showroom ceilings, clinics, hotel function rooms, restaurant ceilings and serviced apartment hallways where a single ceiling-tile slot needs to provide both air movement and ambient lighting — replacing both a separate luminaire and a pendant fan. Installation Notes Drops into a 600×600 mm tile slot in an existing suspended-ceiling grid; the frame rests on the surrounding T-bars while the corner tabs prevent lateral movement. The short power tail at the top connects to the above-ceiling supply circuit. Fan and LED are independently controlled by the included IR remote, with 3 speeds, automatic oscillation and an on/off timer for the fan side.
